Introduction

Fiber Optic Patch Cable also is known as a fiber patch cord, optical cable, or fiber optic jumper. High-quality fiber patch cables are essential for any high-performance fiber-optic network as a critical component commonly used in fiber-optic networks.

Bativ offers an extensive line of SC to SC fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter.

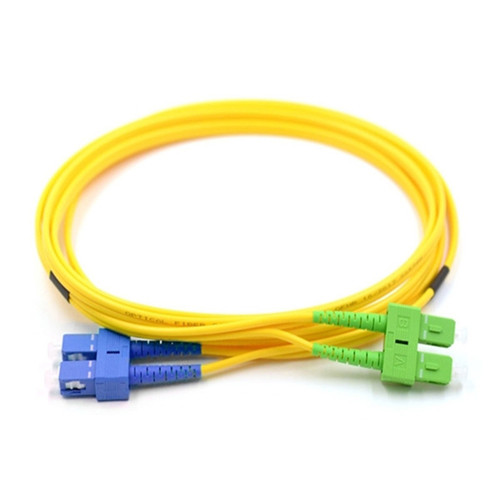

Those SC to SC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality.

This provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks. This LSZH fiber patch cable can replace PVC (OFNR) fiber patch cable but provide better fire rating performance.

Features

• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• LSZH Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

Specifications

Fiber Type	OS2, OM1,OM2,OM3, OM4 fiber
Connector Type	SC to SC
Cable Length	1m,2m,3m … 50m or Customize
Tensile Strength	70 N
Insertion Loss	≤0.2dB
Repeatability	≤0.2dB
Jacket Material	LSZH
Fiber Count	Simplex / Duplex
Polish	APC, UPC for option
Cable Diameter	2.0 mm
Length Tolerance	+/- 1cm
Return Loss	≥55dB for UPC and ≥65dB for APC
Interchangeability	≤0.2dB
Jacket Color	Yellow
Compliance	Telcordia GR-326-CORE
	RoHS compliant
Country Of Origin	China
Environment	Operating: -20°C to 70°C
	Storage: -40°C to 85°C
Application	Optical fiber communications system
	Optical fiber access networks
	Optical fiber CATV
	Optical fiber test equipment
	Optical fiber data communication
	Other Indoor networks & telecommunications
