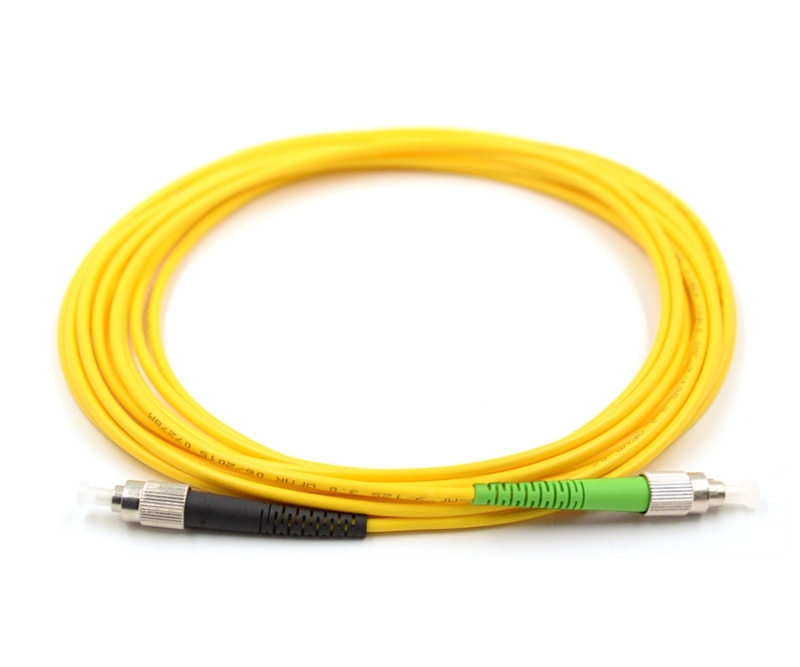

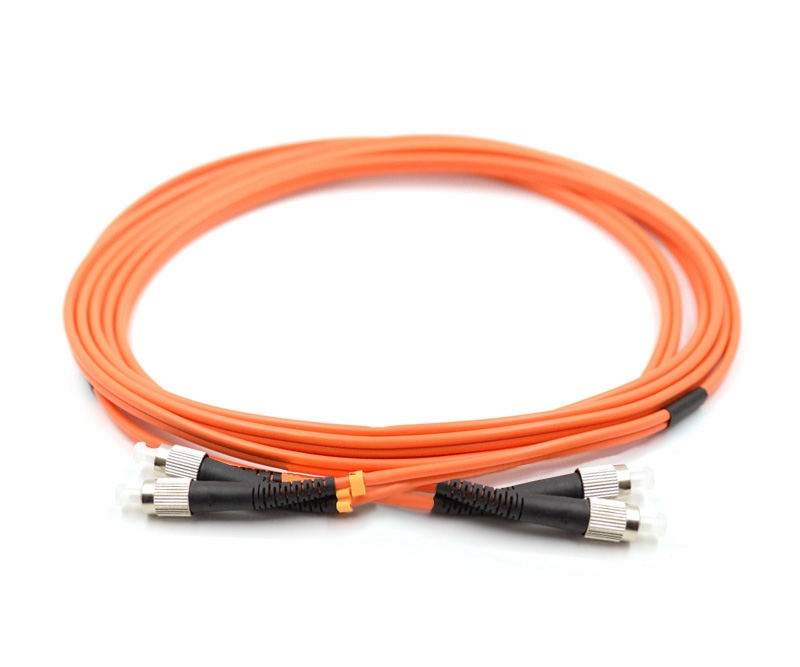

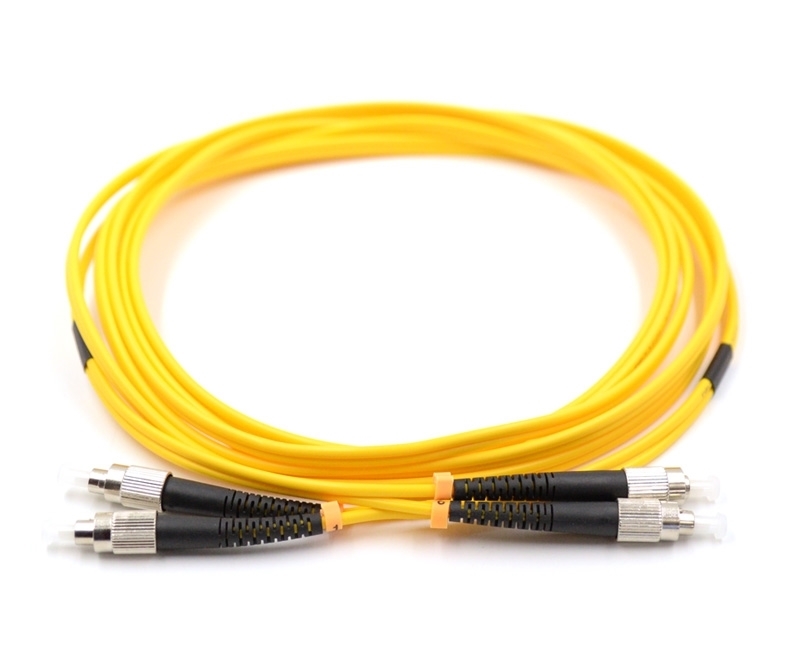

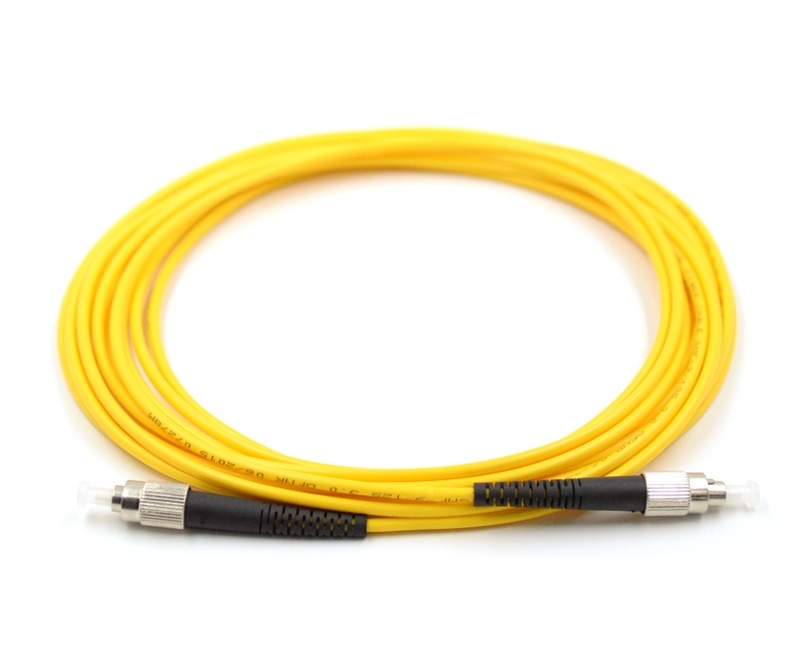

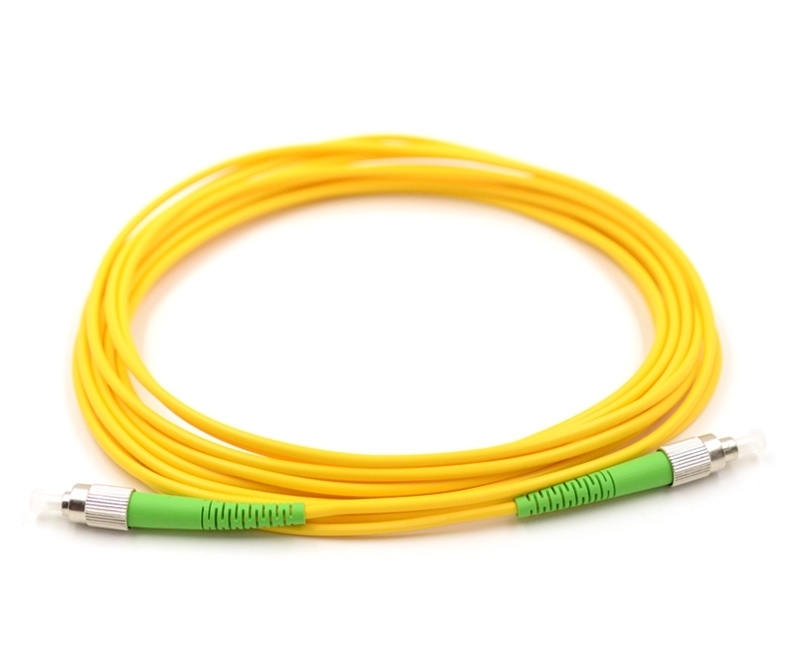

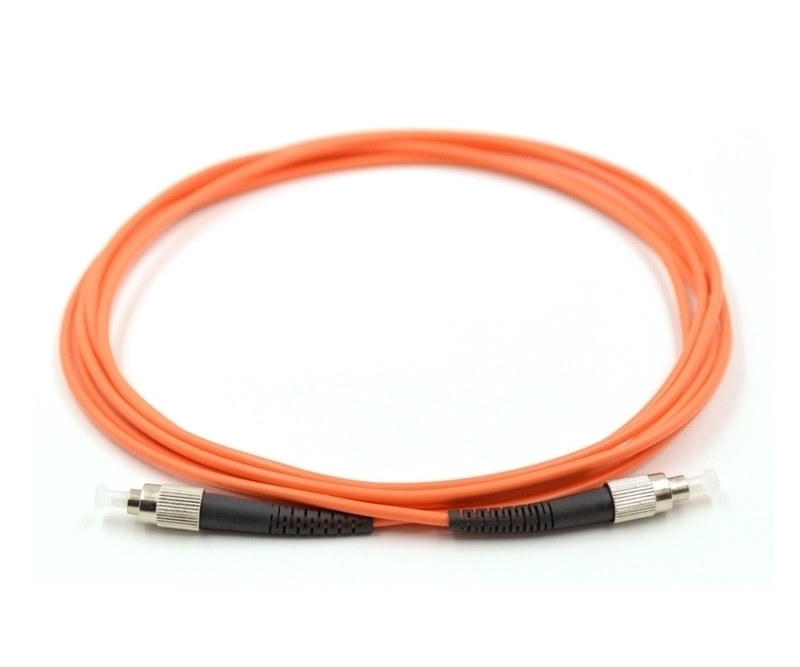

FC Fiber Patch Cord Wholesale
FC Fiber Patch Cord is one of the most common used fiber patch cable, You can customize different types of patch cords from bativ.
- FC/APC, FC/UPC Singlemode and FC/UPC Multimode
- 100% factory transmission tested per ANSI/TIA-568-C.3
- Custom armourd or outdoor waterproof FC patch cable
- Slim-profile boots with durable flexible cable strain relief
- Available boot size in 0.9mm, 1.6mm, 2.0mm, 2.4 mm, 2.8mm, 3.0mm
- Insertion Loss less than 0.2dB and high return loss greater than 55dB
- Good in repeatability and exchangeability
- Wholesale at Low MOQ and cheap price
- Samples are FREE for evaluation
- Your Top Rated FC patch cord Supplier in China
Quick Contact
FC Fiber Patch Cords for Options
Introduction
Fiber Optic Patch Cable also is known as a fiber patch cord, optical cable, or fiber optic jumper. High-quality fiber patch cables are essential for any high-performance fiber-optic network as a critical component commonly used in fiber-optic networks.
Bativ offers an extensive line of FC to FC fiber optic patch cables with many choices of different lengths, jacket material, polish, and cable diameter.
Those FC to FC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality.
This provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks. This LSZH fiber patch cable can replace PVC (OFNR) fiber patch cable but provide better fire rating performance.
Features
- Low insertion loss
- High back reflection loss
- Stable capability and high reliability
- Excellent mechanical capability
- LSZH Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion
- Ideal solution for high-speed data transmission
- 100% inspected for optical characteristics before shipment
Specifications
| Fiber Type | OS2, OM1,OM2,OM3, OM4 fiber |
| Connector Type | FC |
| Cable Length | 1m,2m,3m … 50m or Customize |
| Tensile Strength | 70 N |
| Insertion Loss | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Jacket Material | LSZH |
| Fiber Count | Simplex / Duplex |
| Polish | APC, UPC for option |
| Cable Diameter | 2.0 mm |
| Length Tolerance | +/- 1cm |
| Return Loss | ≥55dB for UPC and ≥65dB for APC |
| Interchangeability | ≤0.2dB |
| Jacket Color | Yellow |
| Compliance | Telcordia GR-326-CORE |
| RoHS compliant | |
| Country Of Origin | China |
| Environment | Operating: -20°C to 70°C |
| Storage: -40°C to 85°C | |
| Application | Optical fiber communications system |
| Optical fiber access networks | |
| Optical fiber CATV | |
| Optical fiber test equipment | |
| Optical fiber data communication | |
| Other Indoor networks & telecommunications |
