Mini Blockless PLC Splitter
Mini Blockless PLC Splitter 1xN & 2xN types for your options. Premuim PLC Chip, G657A Fiber Cable, High Quality, Competitive Prices, Bativ is your good choice for PLC Splitter.
Mini Blockless PLC Splitter Supplier
Planar Lightwave Circuit (PLC) 900μm Bare Fiber PLC Fiber Splitter without connectors. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Commonly used in small spaces in a fiber splice closure or joint box in Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., EPON, GPON, BPON).
- 900μm input/output
- No connectors, allows easily installation in fiber splice closure or joint box saving space
- Ideal for EPON, GPON, FTTH/FTTx

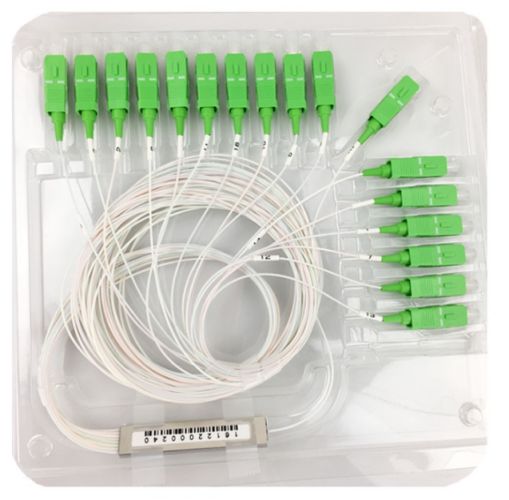

PLC Splitter in PP Module Box
Mini Blockless PLC Splitter for Options
Various Mini Blockless PLC Splitter for custom & wholesale, 1×6, 1×12 PLC splitter are special,Multimode Mini PLC Splitter can be OEM.
1×2 Mini Blockless PLC Fiber Splitter
1×4 Mini Blockless PLC Fiber Splitter
1×6 Mini Blockless PLC Fiber Splitter
1×8 Mini Blockless PLC Fiber Splitter
1×12 Mini Blockless PLC Fiber Splitter

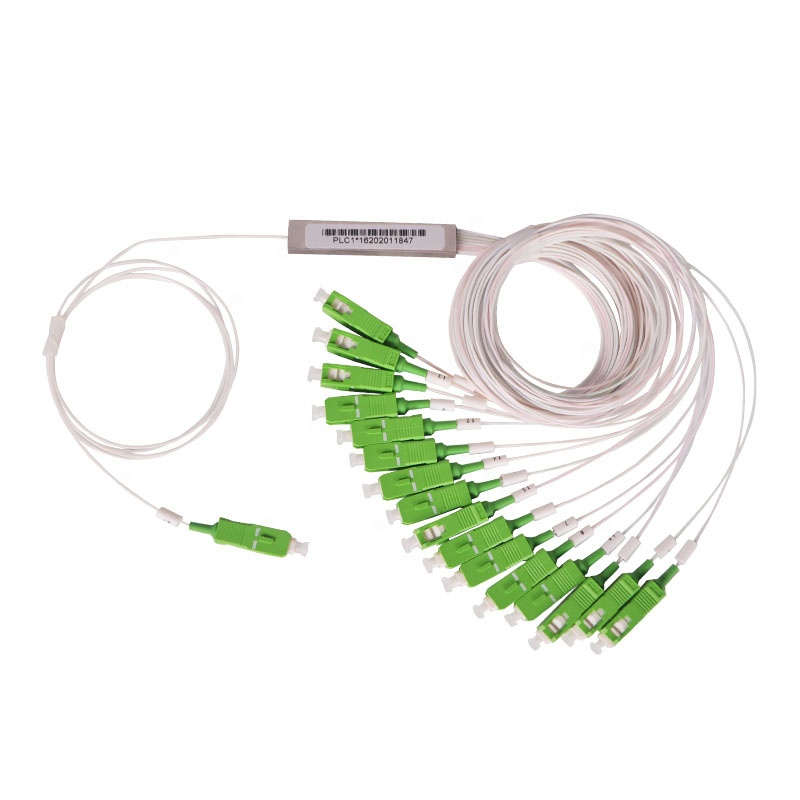

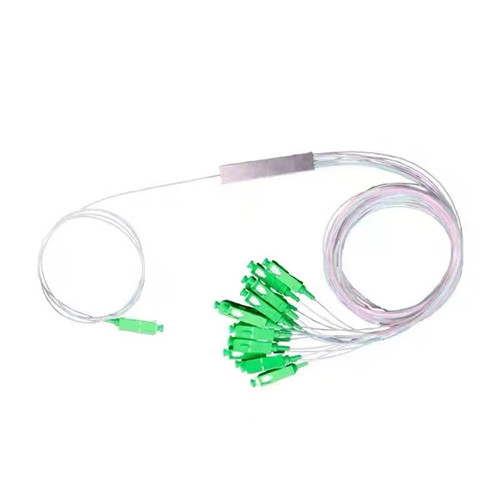

1×16 Mini Blockless PLC Fiber Splitter

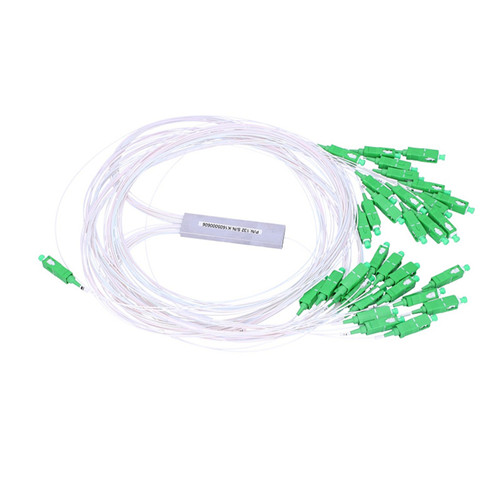

1×32 Mini Blockless PLC Fiber Splitter
1×64 Mini Blockless PLC Fiber Splitter
2×4 Mini Blockless PLC Fiber Splitter

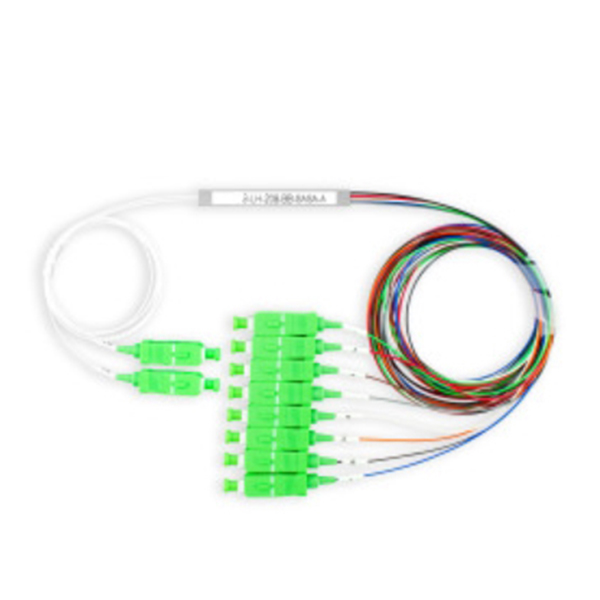

2×8 Mini Blockless PLC Fiber Splitter

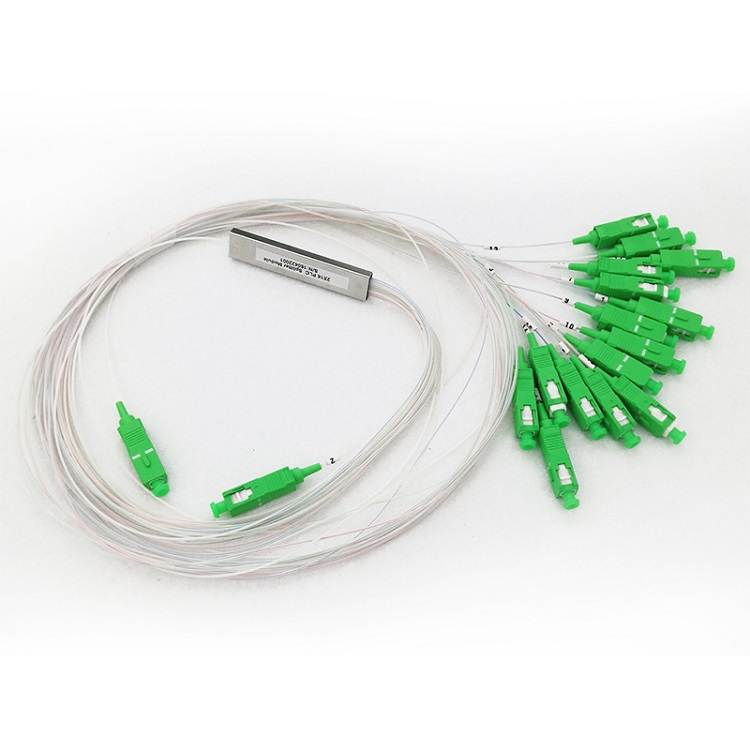

2×16 Mini Blockless PLC Fiber Splitter

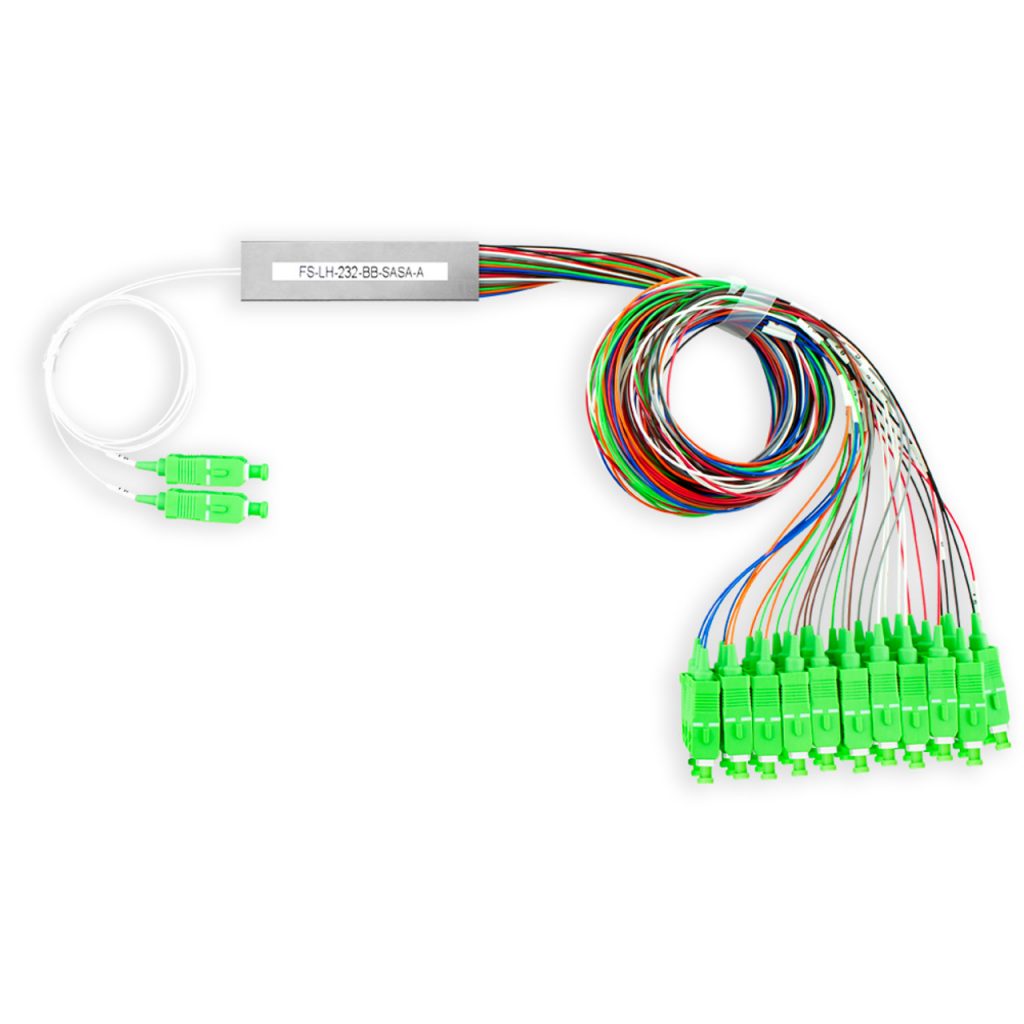

2×32 Mini Blockless PLC Fiber Splitter
Why Choose Bativ Mini Blockless PLC Fiber Splitter?
Bativ is working hard to strictly select good quality Bare Fiber PLC Splitters and lowring your procurements cost.
Custom & OEM
You can customize Mini Blockless PLC Fiber Splitter as your request
Wholesale at Good Price
Save up to 30% for all Mini Steel Tube PLC Splitter from China
Selected Manufacturers
Strictly selected from more than 20+ Blockless type PLC Splitter factories
Specification
| 1×N (N>2) PLCS (Without connector) Optical parameters | ||||||
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operation wavelength (nm) | 1260~1650 | |||||
| Insertion loss (dB) Max | 4.0 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Return loss (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
| PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
| WDL (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Pigtail length (m) | 1.2(±0.1) or customer specified | |||||
| Fiber type | 900um bare fiber | |||||
| Operation temperature (°C) | -40~85 | |||||
| Storage temperature (°C) | -40~85 | |||||
| Dimension (L×W×H) (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
| 2×N (N>2) PLCS (Without connector) Optical parameters | ||||||
| Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Operation wavelength (nm) | 1260~1650 | |||||
| Insertion loss (dB) Max | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 | |
| Loss uniformity (dB) Max | 1.2 | 1.5 | 1.8 | 2.0 | 2.0 | |
| Return loss (dB) Min | 55 | 55 | 55 | 55 | 55 | |
| PDL (dB) Max | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | |
| WDL (dB) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Pigtail length (m) | 1.2(±0.1) or customer specified | |||||
| Fiber type | 900um bare fiber | |||||
| Operation temperature (°C) | -40~85 | |||||
| Storage temperature (°C) | -40~85 | |||||
| Dimension (L×W×H) (mm) | 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | 60×7×4 | |
Popular FTTH PLC Fiber Splitter Types
Mini Blockless PLC Splitter
Suitable to compact designed fiber distribution box or splice closure
PLC Splitter ABS Box
Suitable to apply into fiber distribution frame or fiber patch panel
Cassette Type PLC Fiber Splitter
Suitable to compact designed fiber distribution box or termination box
