PLC Splitter Bare Fiber
PLC Splitter Bare Fiber 1xN & 2xN types for your options. Premuim PLC Chip, G657A Fiber Cable, High Quality, Competitive Prices, Bativ is your good choice for PLC Splitter.
PLC Splitter Bare Fiber Supplier
Planar Lightwave Circuit (PLC) 250μm Bare Fiber PLC Fiber Splitter without connectors. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Commonly used in small spaces in a fiber splice closure or joint box in Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., EPON, GPON, BPON).
- 250 μm input/output
- No connectors, allows easily installation in fiber splice closure or joint box saving space
- Ideal for EPON, GPON, FTTH/FTTx

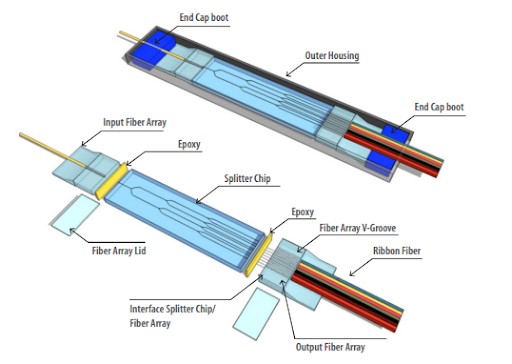

PLC Splitter Bare Fiber Chip Drawing
PLC Splitter Bare Fiber for Options
Various PLC Splitter Bare Fiber for custom & wholesale, 1×6, 1×12 PLC splitter are special,Meanwhile Multimode PLC splitter can be customized.
1×2 PLC Splitter Bare Fiber

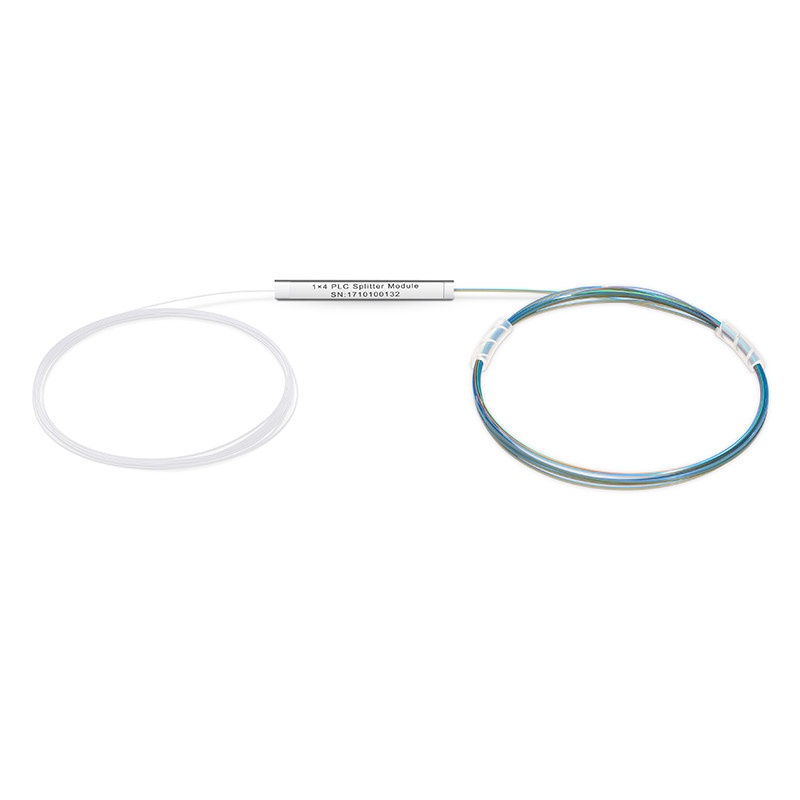

1×4 PLC Splitter Bare Fiber

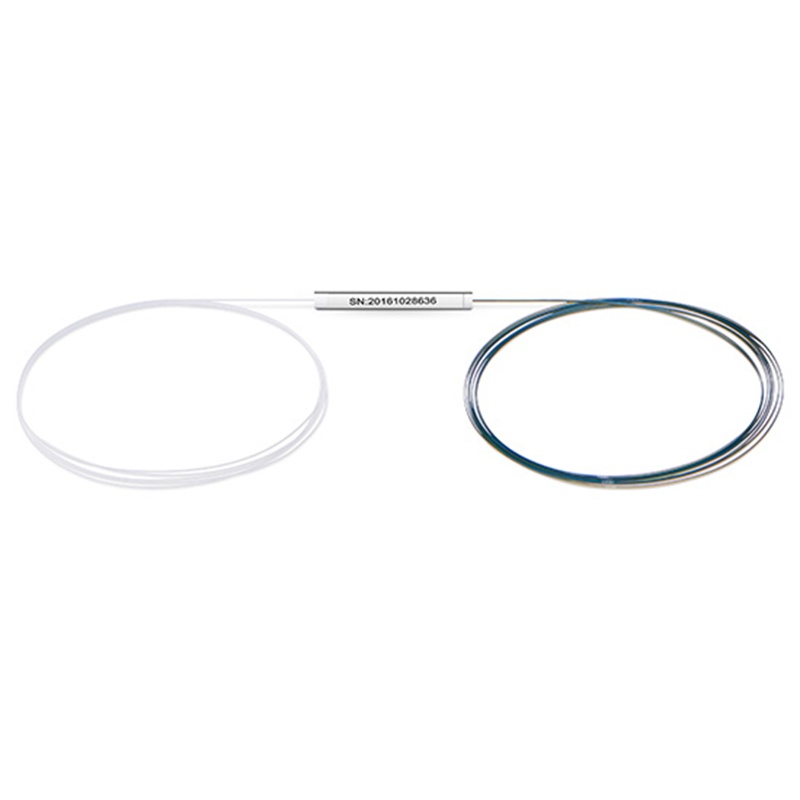

1×6 PLC Splitter Bare Fiber
1×8 PLC Splitter Bare Fiber
1×12 PLC Splitter Bare Fiber

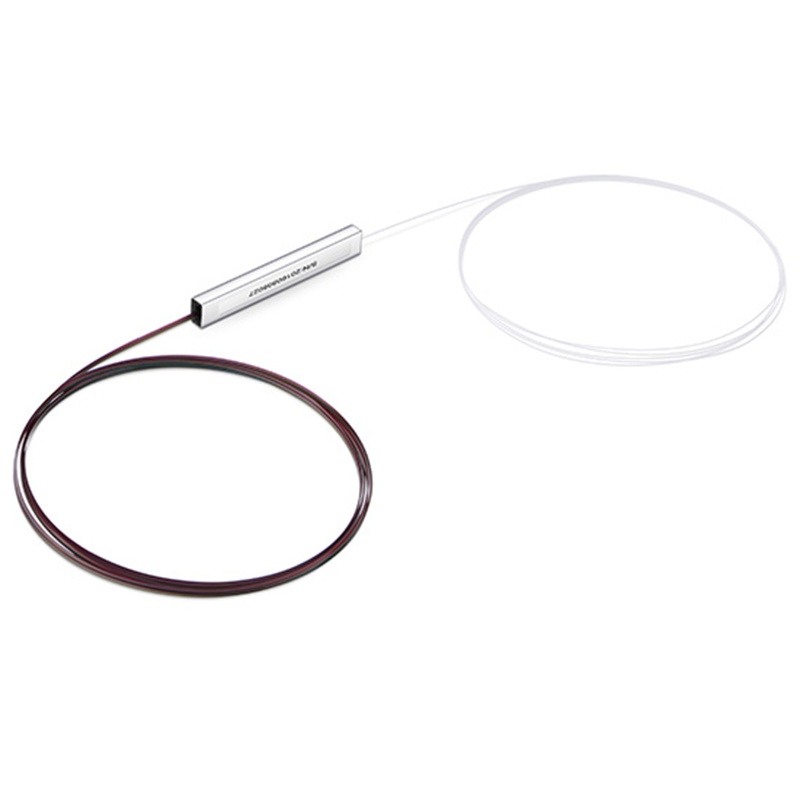

1×16 PLC Splitter Bare Fiber

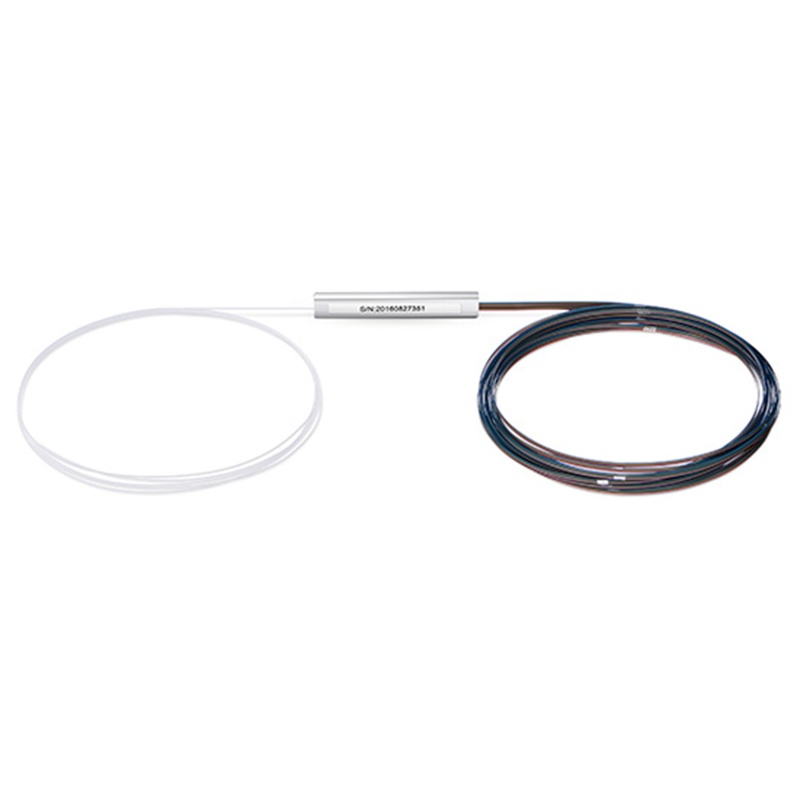

1×32 PLC Splitter Bare Fiber
1×64 PLC Splitter Bare Fiber
2×4 PLC Splitter Bare Fiber
2×8 PLC Splitter Bare Fiber
2×16 PLC Splitter Bare Fiber
2×32 PLC Splitter Bare Fiber
Why Choose Bativ Bare Fiber PLC Splitter?
Bativ is working hard to strictly select good quality Bare Fiber PLC Splitters and lowring your procurements cost.
Custom & OEM
You can customize Bare Fiber PLC Splitter as your request
Wholesale at Good Price
Save up to 30% for all Bare Fiber PLC Splitter from China
Selected Suppliers
Strictly selected from more than 20+ Bare Fiber PLC Splitter factories
Specification
| 1×N (N>2) PLCS (Without connector) Optical parameters | ||||||
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operation wavelength (nm) | 1260~1650 | |||||
| Insertion loss (dB) Max | 4.0 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Return loss (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
| PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
| WDL (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Pigtail length (m) | 1.2(±0.1) or customer specified | |||||
| Fiber type | 250um bare fiber | |||||
| Operation temperature (°C) | -40~85 | |||||
| Storage temperature (°C) | -40~85 | |||||
| Dimension (L×W×H) (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
| 2×N (N>2) PLCS (Without connector) Optical parameters | ||||||
| Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Operation wavelength (nm) | 1260~1650 | |||||
| Insertion loss (dB) Max | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 | |
| Loss uniformity (dB) Max | 1.2 | 1.5 | 1.8 | 2.0 | 2.0 | |
| Return loss (dB) Min | 55 | 55 | 55 | 55 | 55 | |
| PDL (dB) Max | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | |
| WDL (dB) | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Pigtail length (m) | 1.2(±0.1) or customer specified | |||||
| Fiber type | 250um bare fiber | |||||
| Operation temperature (°C) | -40~85 | |||||
| Storage temperature (°C) | -40~85 | |||||
| Dimension (L×W×H) (mm) | 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | 60×7×4 | |
Popular FTTH PLC Fiber Splitter Types
Bare Fiber type PLC Fiber Splitter
Suitable to compact designed fiber distribution box for fusion splicing
Mini Blockless PLC Fiber Optic Splitter
Suitable to compact designed fiber distribution box or splice closure
PLC Fiber Optic Splitter in ABS Box
Suitable to apply into fiber distribution frame or fiber patch panel
Plugin Cassette Type PLC Fiber Splitter
Suitable to compact designed fiber distribution box or termination box
