FC Fiber Optic Adapter
Low Insertion Loss, High Precise Ferrule,Plastic Body Designed for different Use, Bativ FC Coupler / Adapter is ideal for your Multi-purpose Fiber Optic application.
- Low Insertion Loss, APC less than 0.25dB
- Premium Material for FC Adapter body
- Suitable to Fiber Wall Outlet, Fiber Distribution Box etc
- Free Sample Available for Quality Evaluation
- Low MOQ with Affordable Wholesale Price
- High Duribility and Easy to Use
- Excellent Solutions to FC pigtail & patch cable
Quick Contact

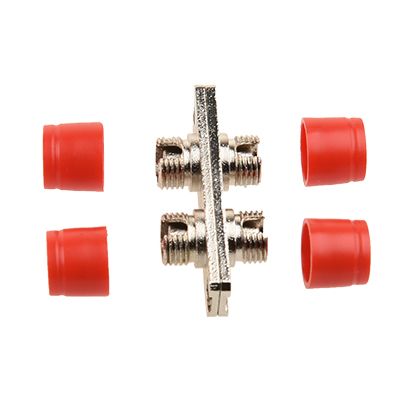

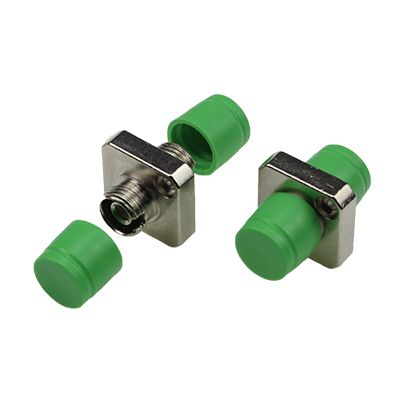

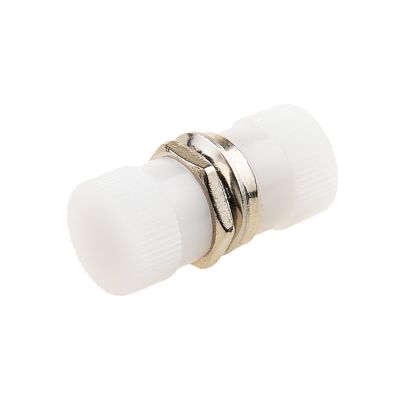

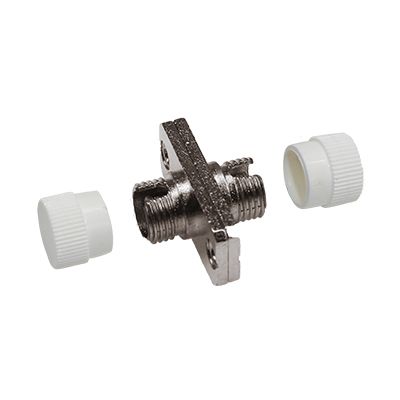

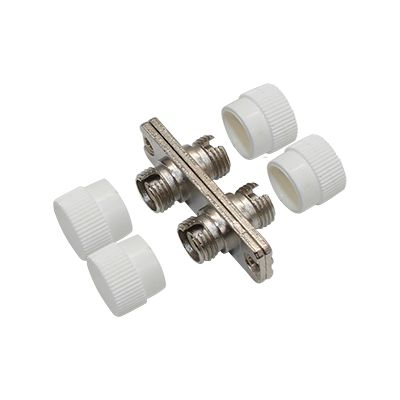

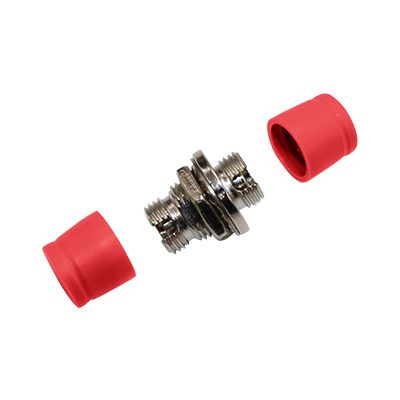

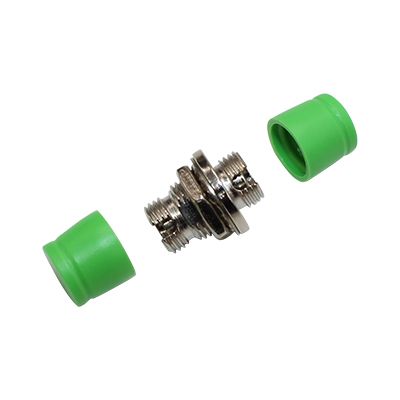

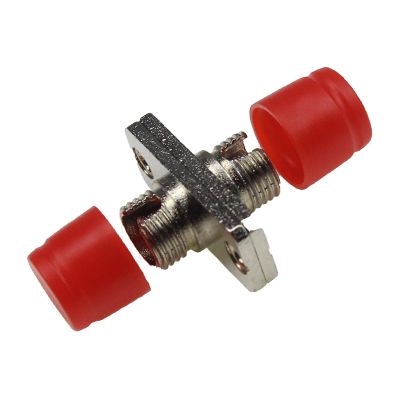

FC Fiber Optic Adapters for Options
FC Adapter Supplier for Custom & Wholesale
Are you looking for a FC Fiber Optic Adapter Supplier?
Bativ is a hard-working team to support you in this field. When supplying FC Fiber Optic Adapters, there are lots of details you should care about one by one. such as 1. package, 2. quality from material to manufacturing process, 3. testing equipment of fiber optic manufacturer, 4. on-time delivery potential, 5. professional fiber optic knowledge, 6. Negotiate with Boss of factories, 7. Long term relationship for warranty etc. A FC Fiber Optic Adapter should help you keep an eye on the above 7 key factors, Then you can sit and relax for your fiber optic products procurement. You will definitely get a cost-effective buying without any trouble.
Sometimes you might be hesitant or don’t know if you are buying at a high price, You can also have a talk with us,We are able to give you a fair review and suggestion. This is 100% FREE consultant. You can simply chat with us on whatsapp in the below.
Other Fiber Optic Adapter / Coupler types
Introduction
Description:
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables. Bativ provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.

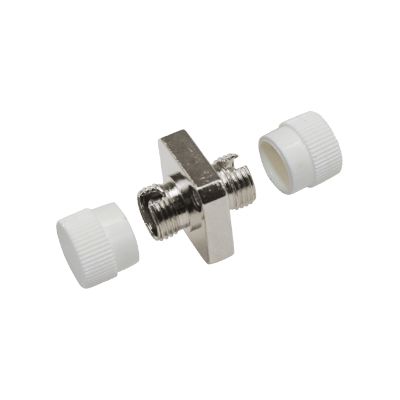

FC Adapter allows you to patch together FC connectors or FC fiber patch cables quickly. The FC coupler is particularly suitable to connect two single fiber FCs for a fast, precisely, quality field connection. The FC adapters feature zirconia ceramic alignment sleeves which provide precision mating for singlemode applications.
Features:
- FC APC/UPC fiber optic adaptor
- Low insertion loss, high return loss
- Good compatibility High precision of mechanical dimensions
- High reliability & stability Ceramic or Bronze Sleeve
- PC, APC, UPC optional Simplex / Duplex /Quad
Specifications:
Insertion loss: no more than 0.2dB (PC, UPC and APC), no more than 0.3dB (mm)
Durability: no more than 0.2dB
Withdraw force: 100 to 300g/f
Operating temperature: -40 to +85°C
Storage temperature: -40 to +85°C
Meets IS C5974 and Bellcore GR-326 standards
| Connector Type | FC to FC |
| Fiber Mode | Singlemode / Multimode |
| Insertion Loss | ≤0.2dB / ≤0.3dB |
| Flange | Yes |
| Alignment Sleeve Material | Zirconia Ceramic |
| Applications | WANs, LANs, CATV Metrology, Railway, Industry |
| CATV, LAN, MAN and WAN application | |
| Data processing networks | |
| Cable television | |
| Fiber-To-The-Home | |
| Premise Distribution | |
| Central Office/Remote Hubs | |
| Body Style | Simplex |
| Polish Type | UPC/APC for Options |
| Mating Durability | 1000 times |
| Color | Blue/Green |
| Compliance | RoHS compliant |
| Environment | Operating: -20°C to 70°C |
| Storage: -40°C to 85°C | |
| Humidity: 95%RH |
